Allen & Heath
Allen & Heath AR2412
Allen & Heath AR2412
Regular price
£1,290.00 GBP
Regular price
Sale price
£1,290.00 GBP
Unit price
/
per
Tax included.
Couldn't load pickup availability

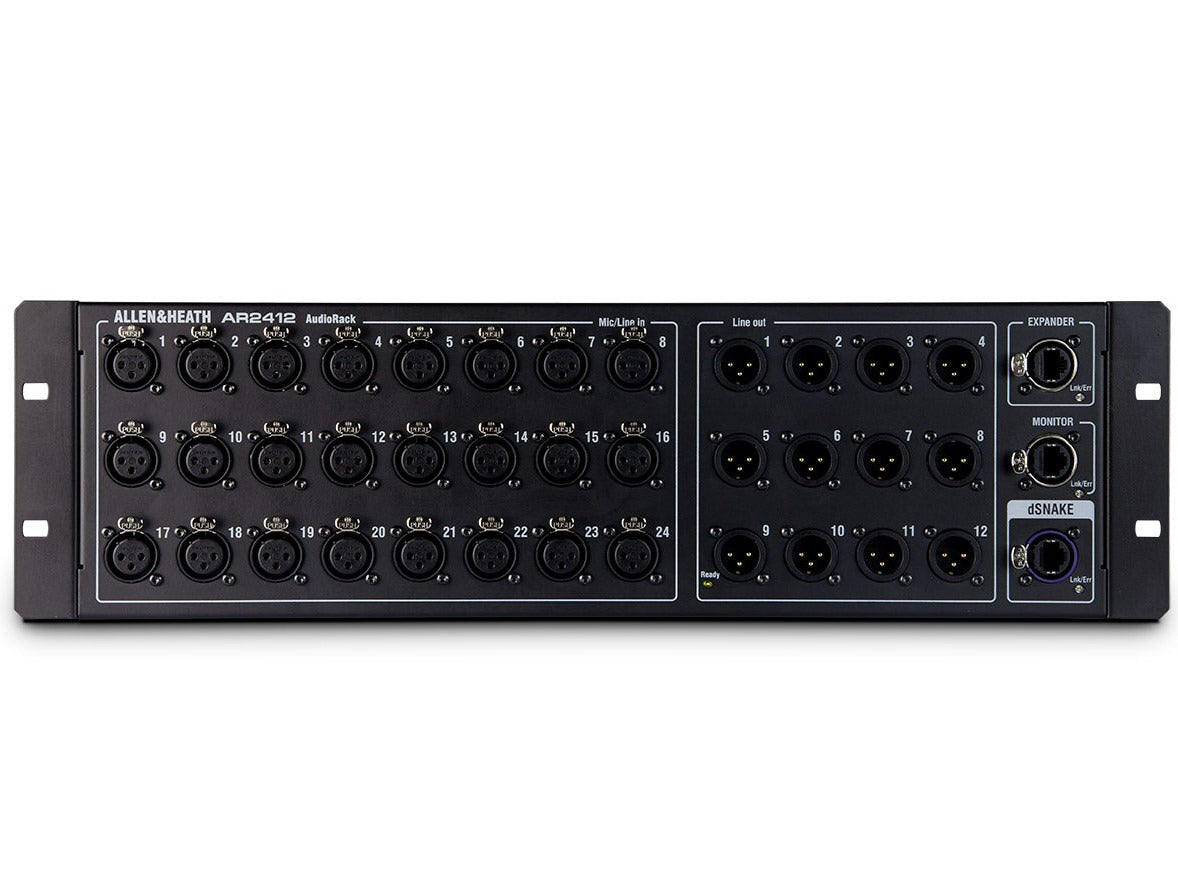

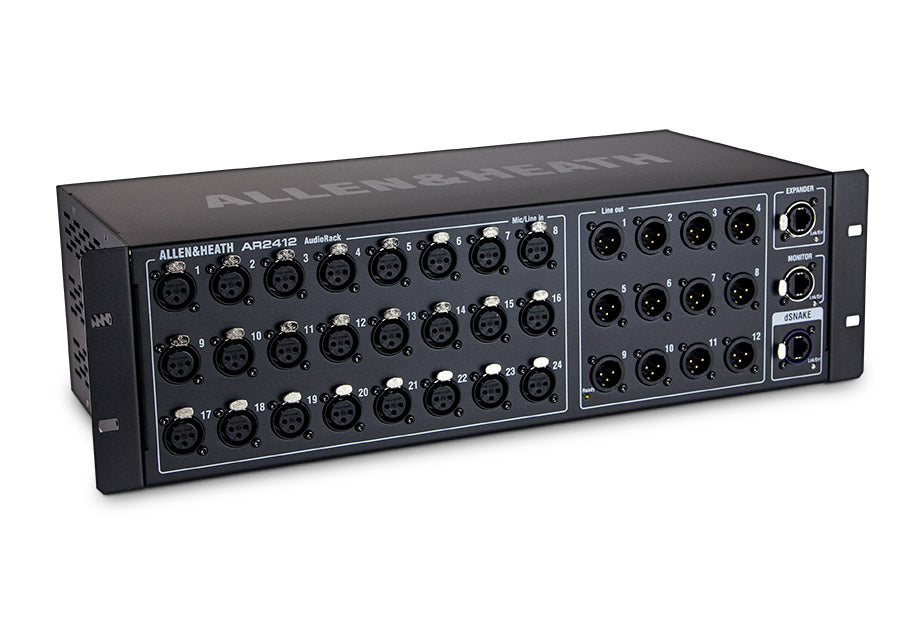

24 XLR Input / 12 XLR Output – 48kHz
AR2412 is a 48kHz, 24 XLR input, 12 XLR output AudioRack, compatible with Qu, Avantis and SQ mixers, and with the AHM-64 audio matrix processor.
Adding an AR2412 to your system lets you position some or all of your I/O up to 100m from the mixer, connected over a single Cat5 cable running Allen & Heath’s dSNAKE protocol.
dSNAKE provides control to the remote preamp, and all mic preamps are scene recallable.
AR2412 also includes a Monitor port for connection to ME-1 personal mixers, and an Expander port for daisy chaining to an AR84 or AB168.
Features
- 24 Mic Preamps on XLR
- 12 XLR Line Outs
- dSNAKE Connection with locking Ethercon port
- Expander Ethercon port for connection to an AR84 or AB168
- Dedicated port for ME personal mixing system
- Rack mountable
