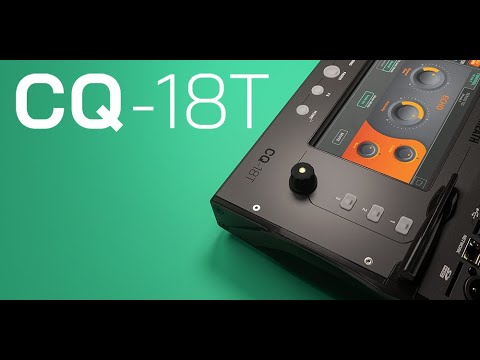

Allen & Heath CQ-18T
Allen & Heath CQ-18T
Couldn't load pickup availability

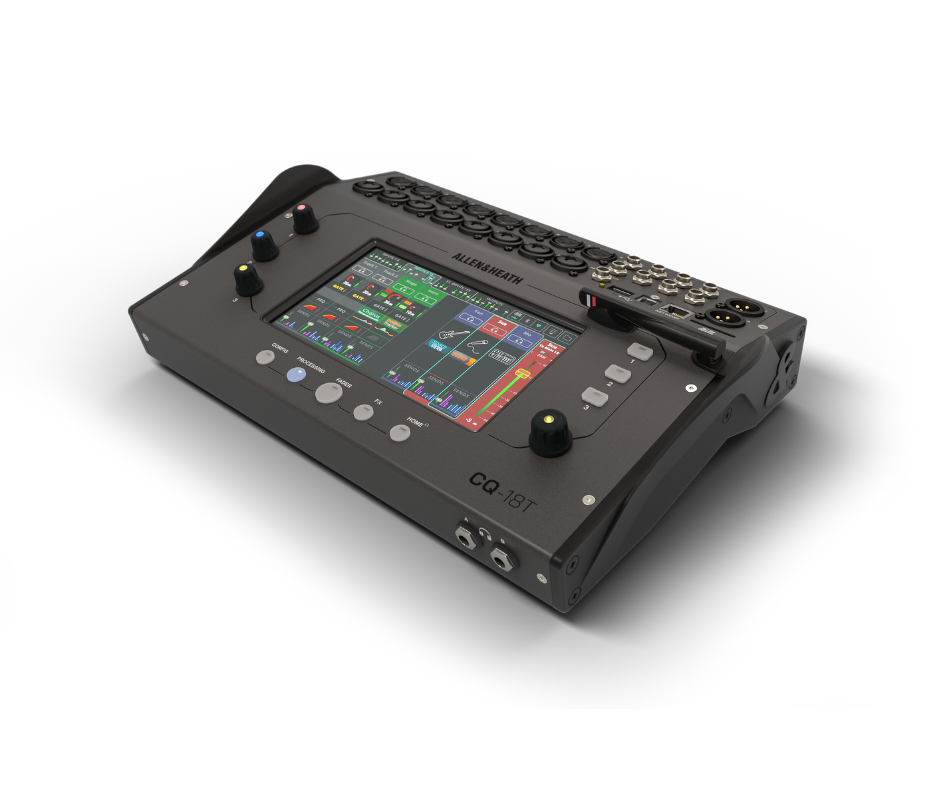

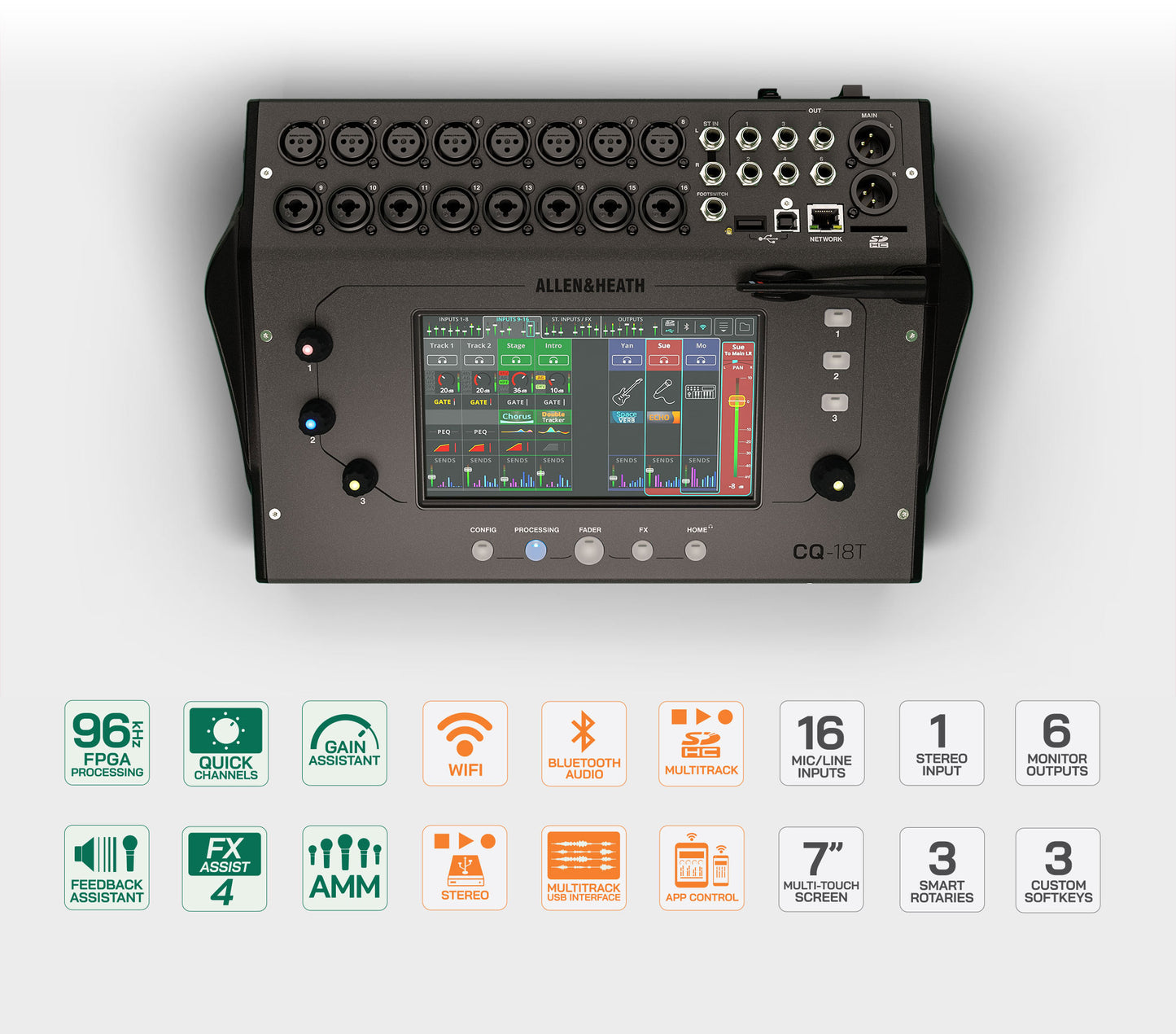

The CQ-18T is part of the NEW Allen & Heath CQ range - This unit is a Bluetooth digital mixer incorporates a touchscreen; with 96 kHz FPGA processing; Quick and Complete channels; Gain Assist (automatic preamp adjustment); Feedback Assist; 4x FX Assist engines; AMM; Control via Windows, Mac, Android and iOS possible.
CQ-18T Features
- Stereo USB record/playback with dedicated input channel
- Stereo Bluetooth playback with dedicated input channel
- 4 FX engines
- 3 Custom Rotaries
- 3 Custom SoftKeys
- Dual Footswitch connection
- 7” Capacitive touchscreen with associated rotary control
- 2 Assignable TRS headphone outputs
- Built-in dual band 2.4G/5G AC Wi-Fi with auto channel select
- Inputs
- 8 XLR
- 8 XLR/TRS Combi
- 2 TRS (stereo)
- Outputs
- 2 XLR (Main)
- 6 TRS (Monitors)
- 24×22 USB-B interface
- 24×22 SD record/playback
Quick and Complete - Pick Your Mixing Style
Every input channel on CQ can be switched between two modes.
Quick Channels offer instrument and application specific processing with the ability to dial in a full channel of processing via a single knob.
Need more control? Switch to Complete Channels for advanced, in-depth tweaking of parameters.
Gain Assistant - Faster Setups
Setting the correct amount of gain for each channel isn’t the most exciting task, and it quickly eats into your setup time with multiple channels to take care of.
CQ’s Gain Assistant quickly and accurately sets the optimal gain level for one or multiple input channels and continues to monitor levels during the performance to prevent any nasty peaks or surprises.
Built-In FX- A New Breed of Effects
CQ introduces a new suite of high-quality, user-friendly reverb, delay and modulation algorithms with instrument-specific presets for speedy setup.
Selected units feature our new FX Assist tool, automatically shaping the effects and dynamically responding to your input signal to ensure your mix is enhanced by FX, not engulfed.
User Friendly - You’re Always In Control

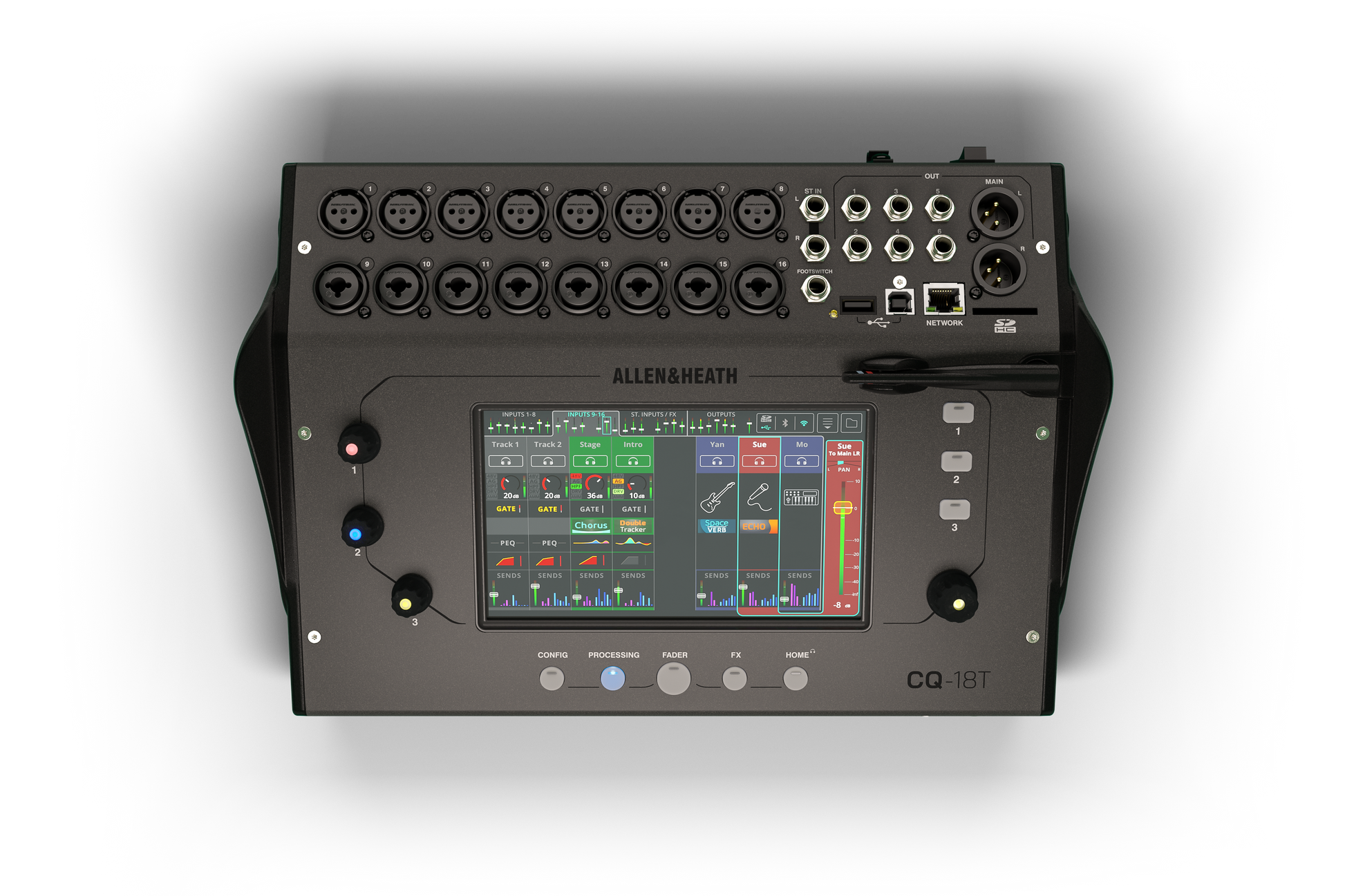

CQ-18T gives you all the tactile control you need to get around the interface quickly.
A 7″ touchscreen and rotary control make it simple to set up and get mixing, and the 3 Custom Rotaries and SoftKeys allow you to access commonly used functions with just your muscle memory.
The free CQ MixPad app also gives you full control of your mix from anywhere in the venue thanks to the built-in WiFi.
I/O - Get Yourself Connected
CQ-12T gives you all the connectivity you need to get going with 10 mic/line inputs split across 5 XLRs and 5 XLR/TRS combi sockets, plus a stereo input via a pair of 1/4″ jacks.
When it comes to outputs, there’s a pair of main mix outputs on XLR plus 6 TRS jack outputs for monitor mixes – enough for the whole band!
AMM - Simplify Speech
The integrated Automatic Mic Mixer (AMM) means you can instantly reduce background noise and improve clarity for speech applications without lifting a finger.
AMM is available on all CQs input channels, making it the perfect portable mixer for conferences, podcasts, debates and small-scale theatre productions.
Recording & Playback - Capture the Performance, Wherever You Are
CQ packs in multiple recording and playback options to ensure you’re always ready to capture the performance.
An integrated USB audio interface enables easy multitrack recording, playback and streaming via your DAW, and an SD card slot is provided for reliable multitrack recording and playback on the go.
You can record and playback stereo files via USB key, and you can even playback from your phone via the built-in Bluetooth functionality.
The CQ-18T also includes a pair of headphone outputs which can be fed separate mixes, perfect for a portable production setup.
Integrated Wi-Fi - Leave Your Access Point at Home
The CQ-18T features powerful integrated dual-band Wi-Fi so you don’t need to bring a bulky access point or router along to use apps with the mixer.
Just connect your devices to the CQ’s secure Wi-Fi network and you’re ready to go.
