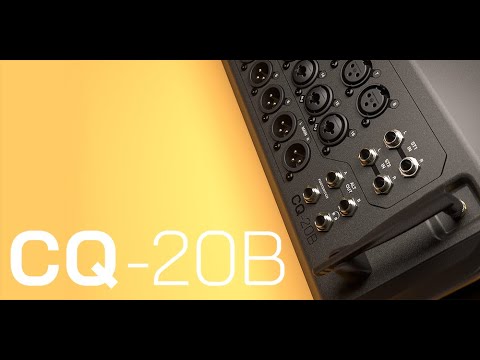

Allen & Heath CQ-20B
Allen & Heath CQ-20B
Couldn't load pickup availability
The CQ20B is part of the NEW Allen & Heath CQ range - This unit is a Bluetooth digital mixer; with 96 kHz FPGA processing; Quick and Complete channels; Gain Assist (automatic preamp adjustment); Feedback Assist; 4x FX Assist engines; AMM; Control via Windows, Mac, Android and iOS possible.
CQ-20B Features
- Stereo USB record/playback with dedicated input channel
- Stereo Bluetooth playback with dedicated input channel
- 4 FX engines
- Dual Footswitch connection
- Assignable TRS headphone output
- Built-in dual band 2.4G/5G AC Wi-Fi with auto channel select
- Inputs
- 8 XLR
- 8 XLR/TRS Combi
- 4 TRS (stereo)
- Outputs
- 2 XLR (Main)
- 6 TRS (Monitors)
- Assignable Alt Out
- 24×24 USB-B interface
- 24×24 SD record/playback
Integrated Wi-Fi - Leave Your Access Point at Home
The CQ-20B is designed to be controlled via the intuitive CQ MixPad app and features powerful integrated dual-band Wi-Fi so you don’t need to connect an access point or router to use apps for control of the mixer.
Just connect your devices to the CQ’s secure Wi-Fi network and you’re ready to go.
Recording & Playback - Capture the Performance, Wherever You Are
CQ packs in multiple recording and playback options to ensure you’re always ready to capture the performance.
An integrated USB audio interface enables easy multitrack recording, playback and streaming via your DAW, and an SD card slot is provided for reliable multitrack recording and playback on the go.
You can record and playback stereo files via USB key, and you can even playback from your phone via the built-in Bluetooth functionality.
The CQ-20B also includes an assignable Alt-Out - great for an engineer's IEM connection.
Built-In FX- A New Breed of Effects
CQ introduces a new suite of high-quality, user-friendly reverb, delay and modulation algorithms with instrument-specific presets for speedy setup.
Selected units feature our new FX Assist tool, automatically shaping the effects and dynamically responding to your input signal to ensure your mix is enhanced by FX, not engulfed.
I/O - Get Yourself Connected
CQ-20B gives you all the connectivity you need to get going with 16 mic/line inputs plus a stereo line input.
When it comes to outputs, there’s a pair of main mix outputs plus 6 outputs for monitor mixes – enough for the whole band – and two headphone outputs are provided which can be assigned different mixes, perfect for recording.
AMM - Simplify Speech
The integrated Automatic Mic Mixer (AMM) means you can instantly reduce background noise and improve clarity for speech applications without lifting a finger.
AMM is available on all CQs input channels, making it the perfect portable mixer for conferences, podcasts, debates and small-scale theatre productions.
