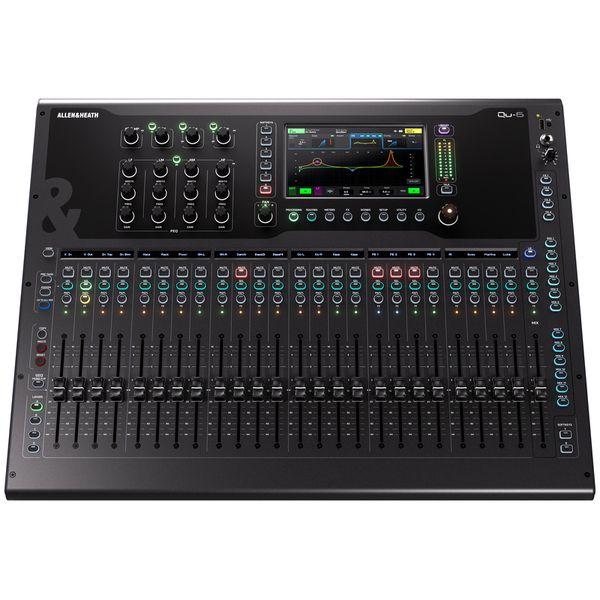

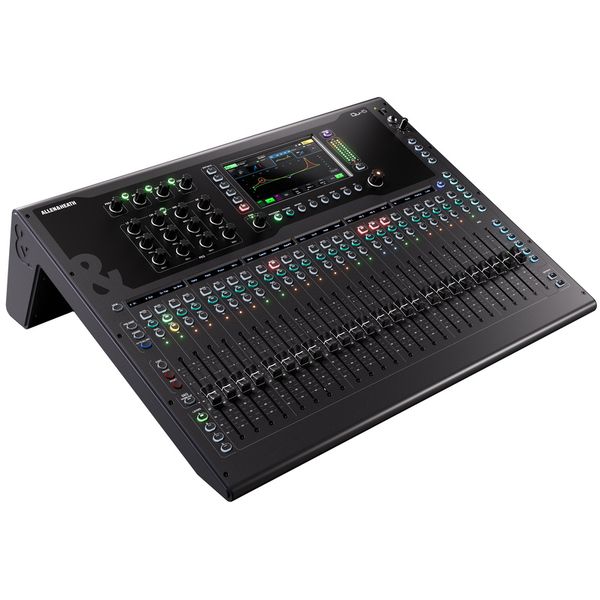

Allen & Heath QU-6

The new Qu retains the much-loved appearance and form factor of the original Qu series, but with multiple hardware improvements to elevate the sonic performance and mixing experience.

Updated microphone preamps and high-performance 96kHz AD/DA converters combine to deliver pristine audio to and from the XCVI core, preserving every detail of the source.

Every channel now features a channel display – showing channel name, channel type, or socket number – and a chromatic channel meter for at-a-glance level information, and the new touchscreen accommodates a completely redesigned user interface.

• 7" capacitive touchscreen
• 25 faders
• 24 Mic/Line combo inputs
• 2 stereo-line inputs
• 16 XLR outputs
• 2 TRS outputs
• 1 AES3 output
• 4 Channel strip layers
• 8 SoftKeys
• 96 kHz XCVI Core
• 38 inputs for mixing (32 mono, 2 stereo, USB)
• 12 mix busses (6 mono aux/group, 6 stereo aux/group)
• 4 matrix buses
• 6 FX engines
• SLink port
• USB-A stereo recording/playback
• USB-C interface with 32x32 channels
• SD card multitrack recording/playback (16x16 at 96 kHz, 32x32 at 48 kHz)
• 19” rack mountable (optional)
• Dimensions: (W x H x D) 609 x 476 x 213 mm
