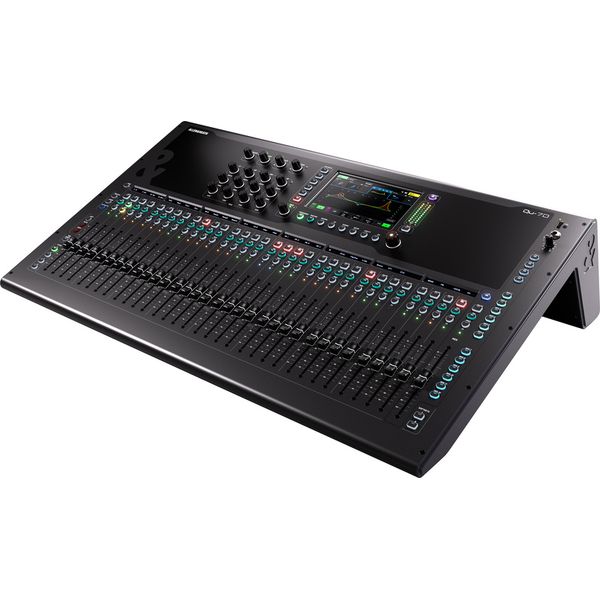

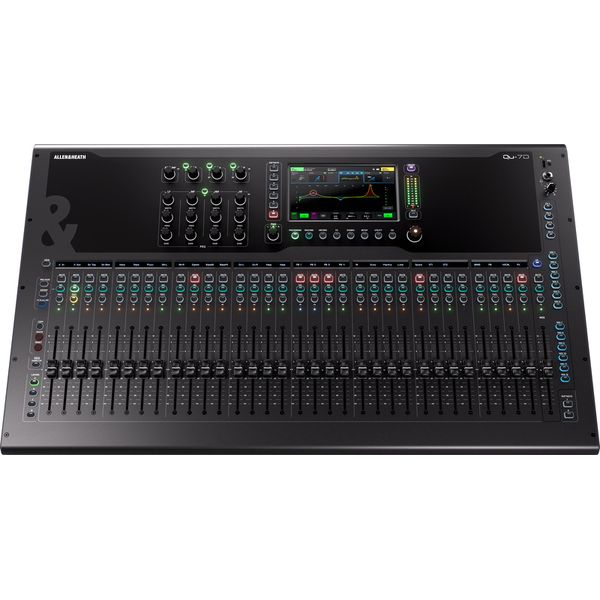

Allen & Heath QU-7D

The new Qu retains the much-loved appearance and form factor of the original Qu series, but with multiple hardware improvements to elevate the sonic performance and mixing experience.

Updated microphone preamps and high-performance 96kHz AD/DA converters combine to deliver pristine audio to and from the XCVI core, preserving every detail of the source.

Every channel now features a channel display – showing channel name, channel type, or socket number – and a chromatic channel meter for at-a-glance level information, and the new touchscreen accommodates a completely redesigned user interface.

The Qu-7D provides a 16×16 Dante interface at 96kHz or 48kHz for integration into larger systems or installs.

• 7" capacitive touchscreen
• 33 fader
• 32 Mic / Line combo inputs
• 2 Stereo line inputs
• 20 XLR outputs
• 2 TRS outputs
• 1 AES3 output
• 4 shannel strip level
• 8 soft keys
• 96 kHz XCVI Core
• 38 inputs for mixing (32 mono, 2 stereo, USB)
• 12 mix busses (6 mono aux / group, 6 stereo aux / grou
• 4 Matrix busses
• 6 FX engines
• Dante (16 x 16)
• Slink port
• USB-A stereo recording/playback
• USB-C interface with 32 x 32 channels
• SD card multitrack recording/playback (16 x 16 at 96 kHz, 32 x 32 at 48 kHz)
• Optional 19" rack-mountable (not included in scope of delivery)
• Dimensions (W x H x D) 800 x 476 x 211 mm
