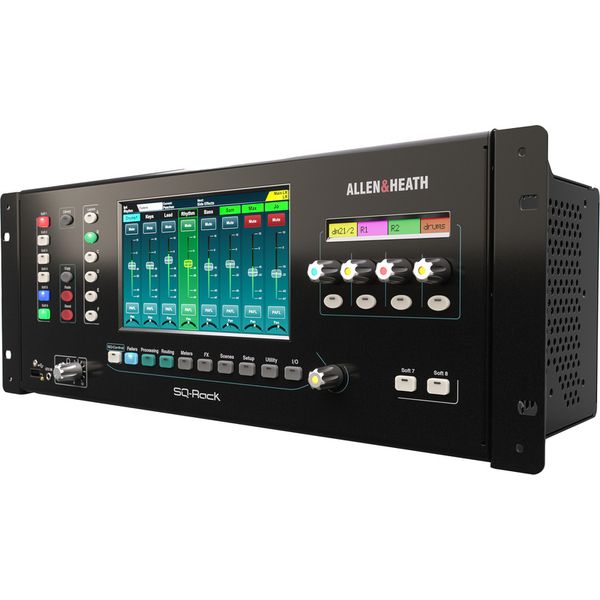

Allen & Heath SQ Rack

SQ-Rack is the ultimate tool for audio professionals, delivering Allen & Heath’s renowned 96kHz SQ core in a compact, rack-mountable design. Perfectly crafted to meet the demands of live sound and installation environments, SQ-Rack combines power, flexibility, and intuitive control in one versatile solution.

48 channel, 96kHz rackmount digital mixer for live sound, AV and installation.

• 96 kHz FPGA core signal processing: latency 0.7 ms

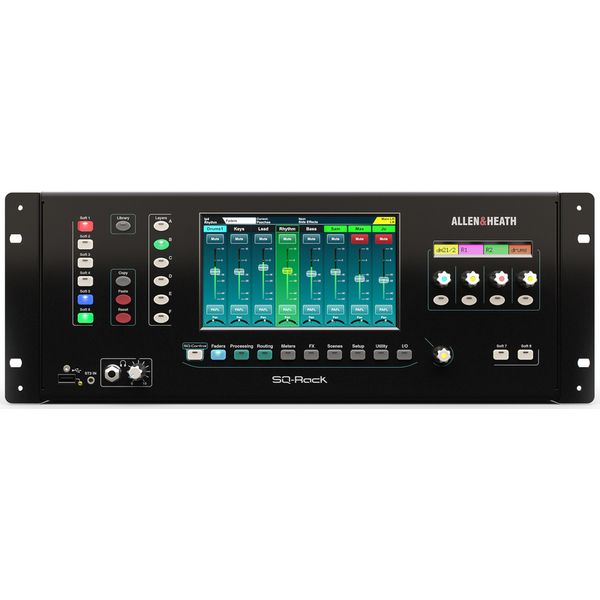

• 7" Multi-touch screen
• 12 Stereo mixes - perfect for in-ear monitoring setups
• 3 Matrix
• 8 FX engines
• Hands control: 8 Softkeys
• 4 Soft rotaries
• SQ-Rack Apps: SQ-MixPad, SQ4You, SQ-Control
• 128 x 128 SLink connection for remote audio networking
• 64 x 64 channel I/O connection for audio networking
• 32 x 32 channel USB audio interface
• SQ-Drive for direct recording to USB stick

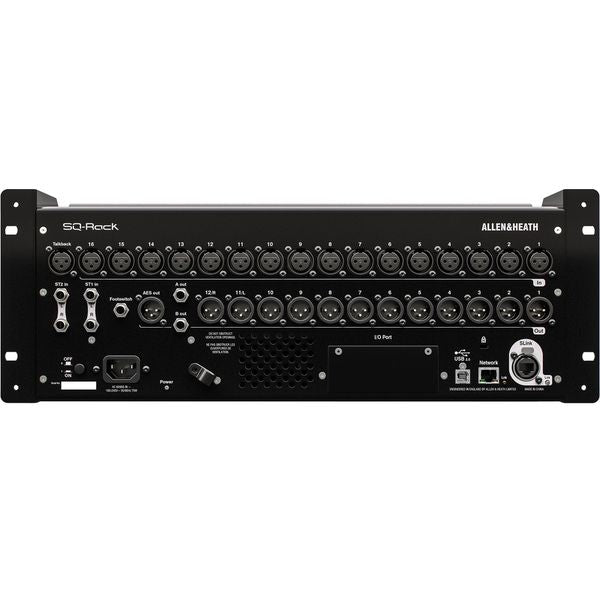

• 17 Mono XLR inputs: 1 Talkback
• 2x 6.3 mm TRS jack stereo inputs
• 3.5 mm Stereo input
• 1 XLR Talkback mic input
• 6.3 mm footswitch
• 12 XLR outputs
• 2 x 6.3 mm TRS outputs
• AES XLR output
• 6.3 mm headphone output
• I/O port for option expansion cards: Dante/Madi/Waves/SLink
• Multi-position 19" rack ears
• 4 U installation height
• Dimensions: 430 x 214 x 173 mm
