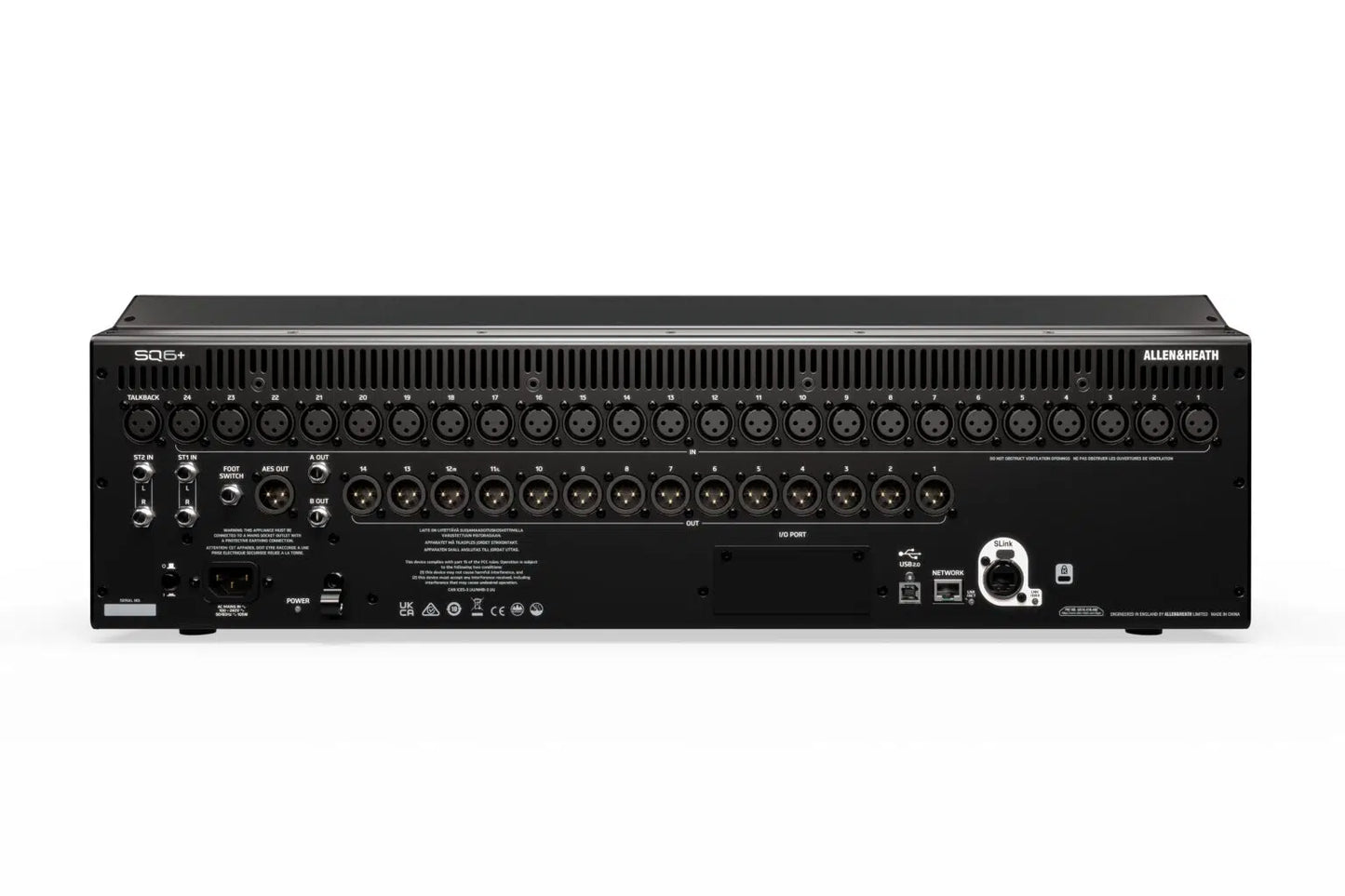

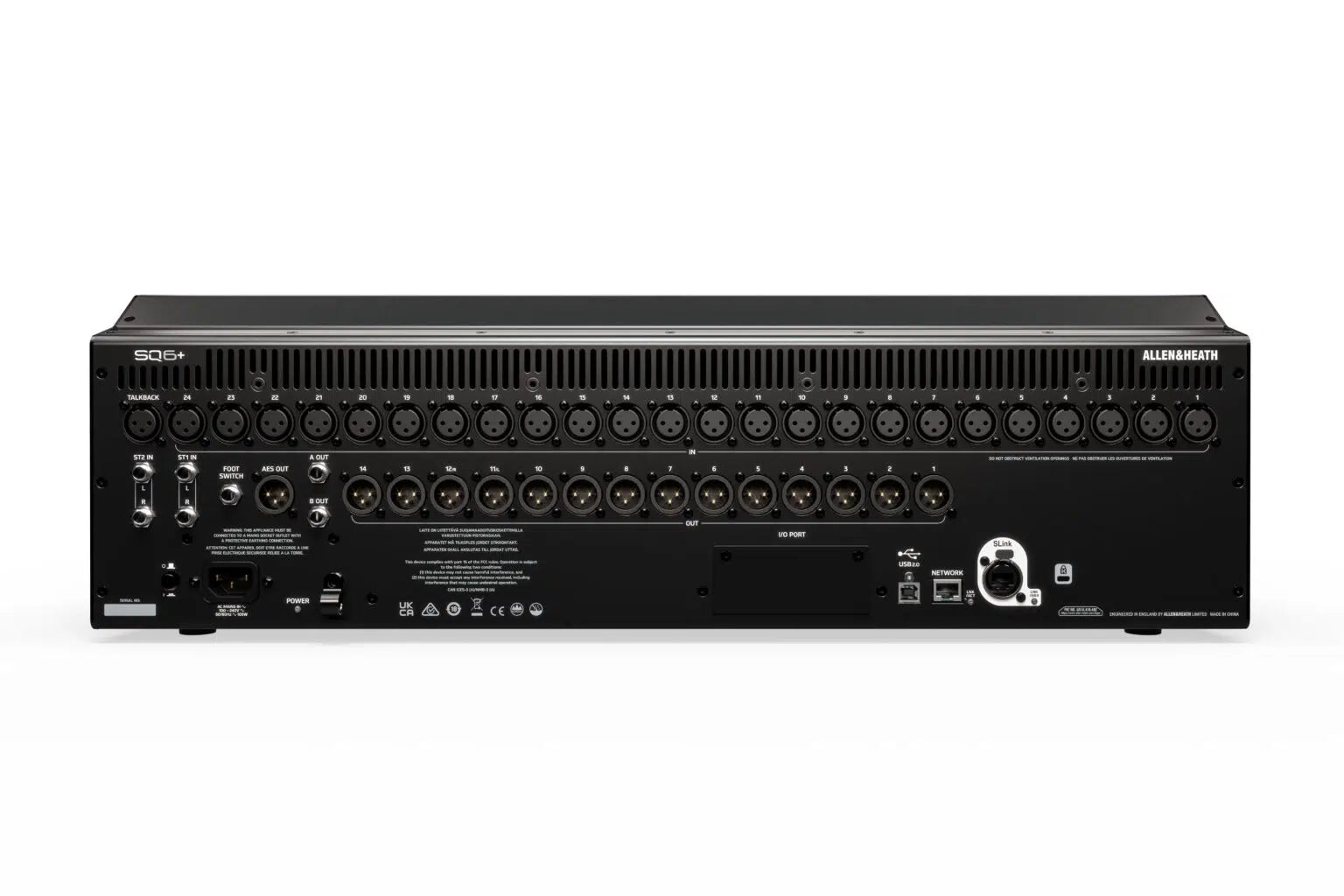

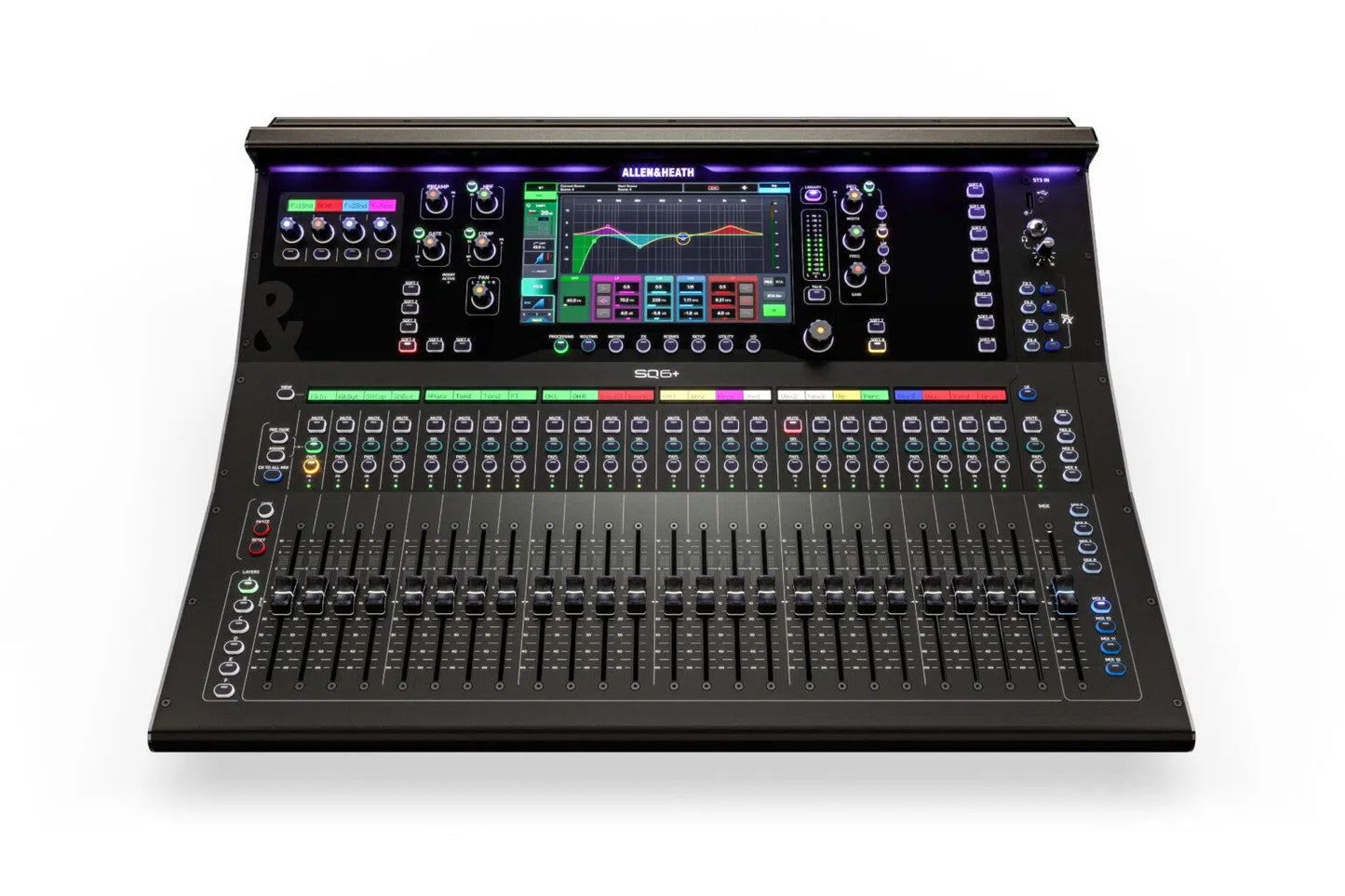

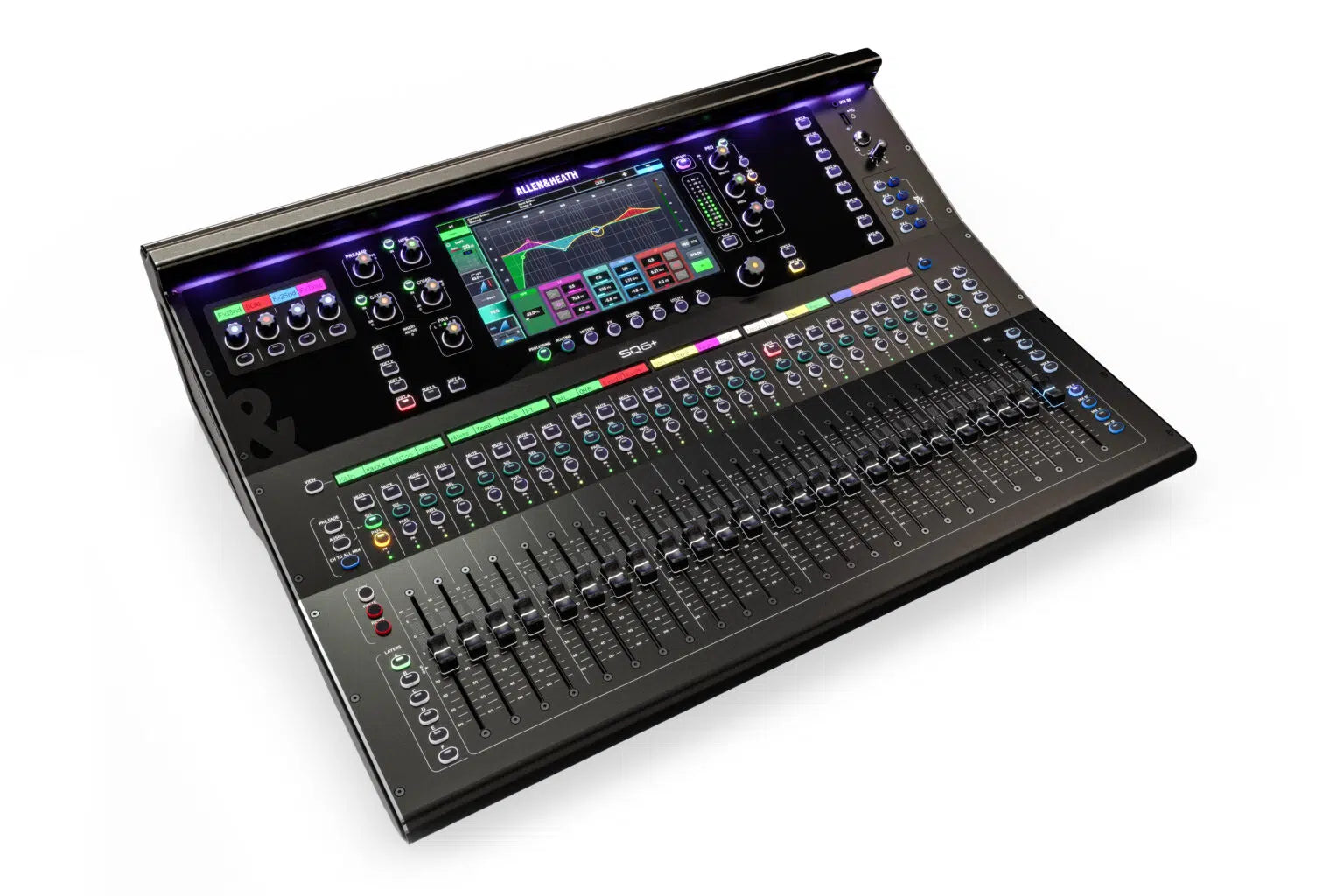

Allen & Heath SQ6+

The SQ6+ expands the range with 25 motorised faders, 16 assignable SoftKeys and 4 SoftRotaries giving you more physical control when working with larger, more complex shows. Add 4 built-in RackUltra FX engines and you have a mixer that strikes the perfect balance between hands-on control and portability.

• 24+1 Onboard Preamps
• 16 Line Outputs
• 24+1 Faders / 6 Layers
• 16 Assignable SoftKeys

• 4 Assignable Soft Rotaries
• Audio and Processing
  • 96kHz XCVI Core
  • 48x Inputs to Mix
  • 12x Stereo Aux/Group Mixes + LR
  • 6x Mono/Linkable Matrix
  • Full Channel and Mix processing (HPF, PEQ/GEQ, Comp, Gate)
  • DEEP Processing ready
  • 8x Rack Extra FX Engines with dedicated send and return channels
  • 4x RackUltra FX Engines with dedicated send and return channels
• Digital I/O
  • 128×128 Intelligent SLink Port for Everything I/O expansion and connection to other A&H consoles
  • 1x I/O Port for option cards (SLink, Dante, Waves and MADI cards available)
  • 1x AES3 Stereo Digital Output Socket
  • USB Recording & Playback
  • USB A: 16 Channels @ 96kHz
  • USB A: 32 Channels @ 48kHz
  • USB B Interface: 32×32 @ 96kHz
  • USB B Interface: 32×32 @ 48kHz
• Analogue I/O
  • 24x XLR Mic/Line Input Sockets
  • 14x XLR Output Sockets
  • 3x Stereo Line Input Sockets (4x TRS ¼” sockets, 1x 3.5mm TRS socket)
  • 1x XLR Talkback Socket
  • 2x TRS Output Sockets
  • Stereo Headphone Output
• Control
  • 25x 100mm Motorised Faders
  • 16x SoftKeys
  • 4x SoftRotaries
  • 6x Channel Strip Layers
  • 9” Touchscreen with dark GUI
  • Configurable single/dual Footswitch Connection
  • Remote control via free apps – Windows/MacOS/iOS/Android
