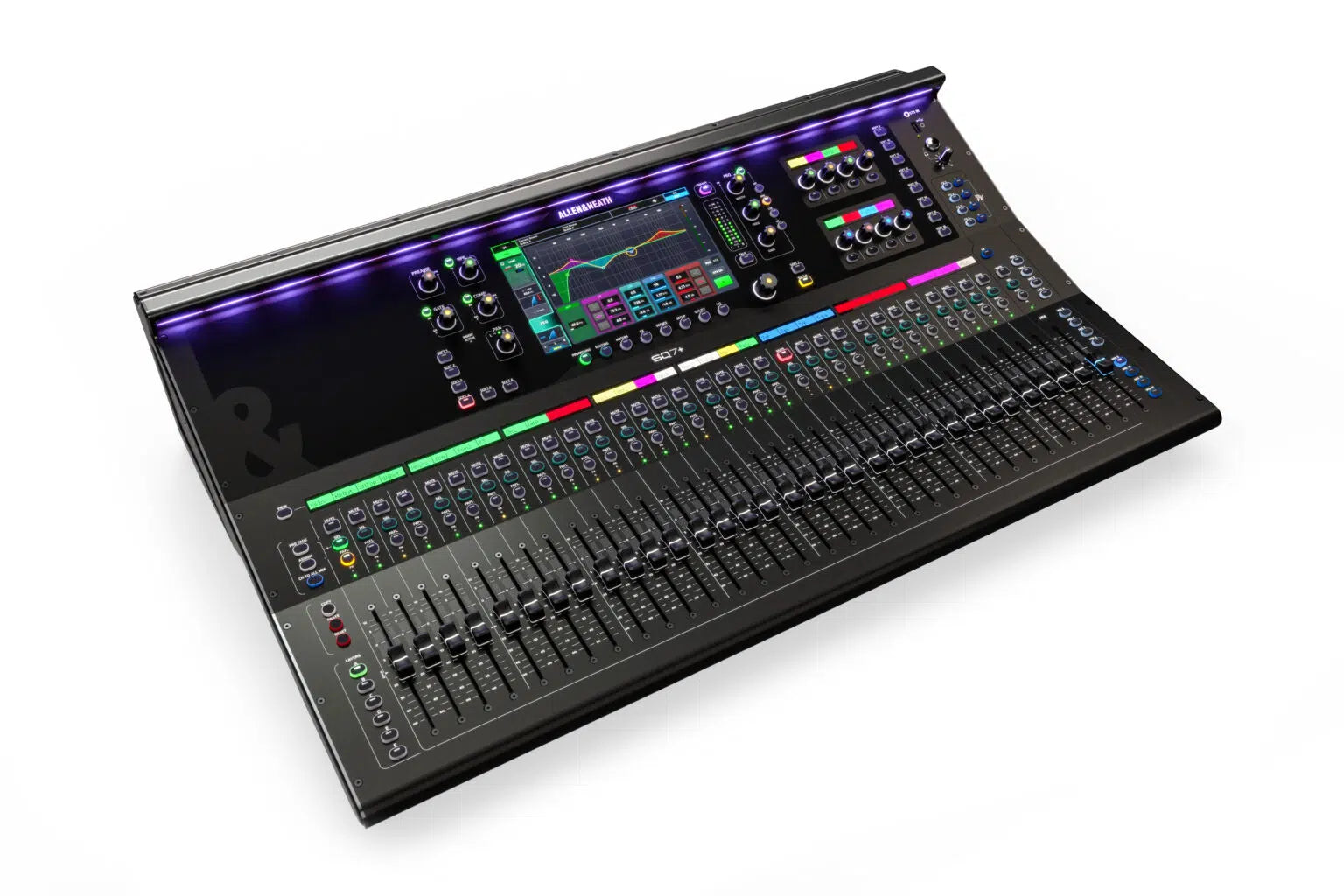

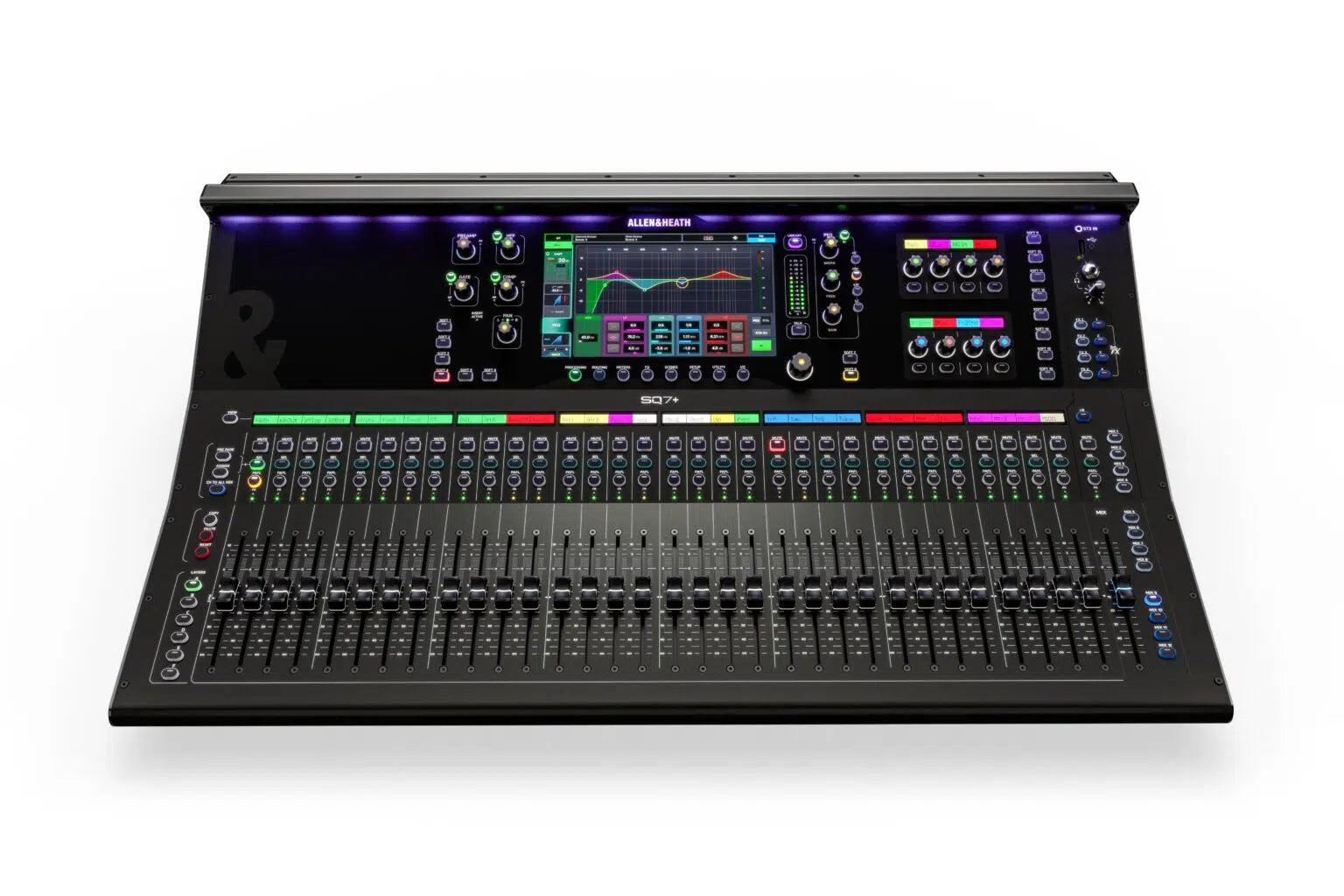

Allen & Heath SQ7+

The SQ7+ is the largest mixer in the range, built for engineers who need the ultimate in hands-on control. 33 motorised faders, 16 assignable SoftKeys and 8 SoftRotaries put your entire show within reach, all backed by the same 96kHz XCVI core and 4 built-in RackUltra FX engines that power every SQ+ model.

• 32+1 Onboard Preamps
• 18 Line Outputs
• 32+1 Faders / 6 Layers
• 16 Assignable SoftKeys

• 8 Assignable Soft Rotaries
• Audio and Processing
  • 96kHz XCVI Core
  • 48x Inputs to Mix
  • 12x Stereo Aux/Group Mixes + LR
  • 6x Mono/Linkable Matrix
  • Full Channel and Mix processing (HPF, PEQ/GEQ, Comp, Gate)
  • DEEP Processing ready
  • 8x Rack Extra FX Engines with dedicated send and return channels
  • 4x RackUltra FX Engines with dedicated send and return channels
• Digital I/O
  • 128×128 Intelligent SLink Port for Everything I/O expansion and connection to other A&H consoles
  • 1x I/O Port for option cards (SLink, Dante, Waves and MADI cards available)
  • 1x AES3 Stereo Digital Output Socket
  • USB Recording & Playback
  • USB A: 16 Channels @ 96kHz
  • USB A: 32 Channels @ 48kHz
  • USB B Interface: 32×32 @ 96kHz
  • USB B Interface: 32×32 @ 48kHz

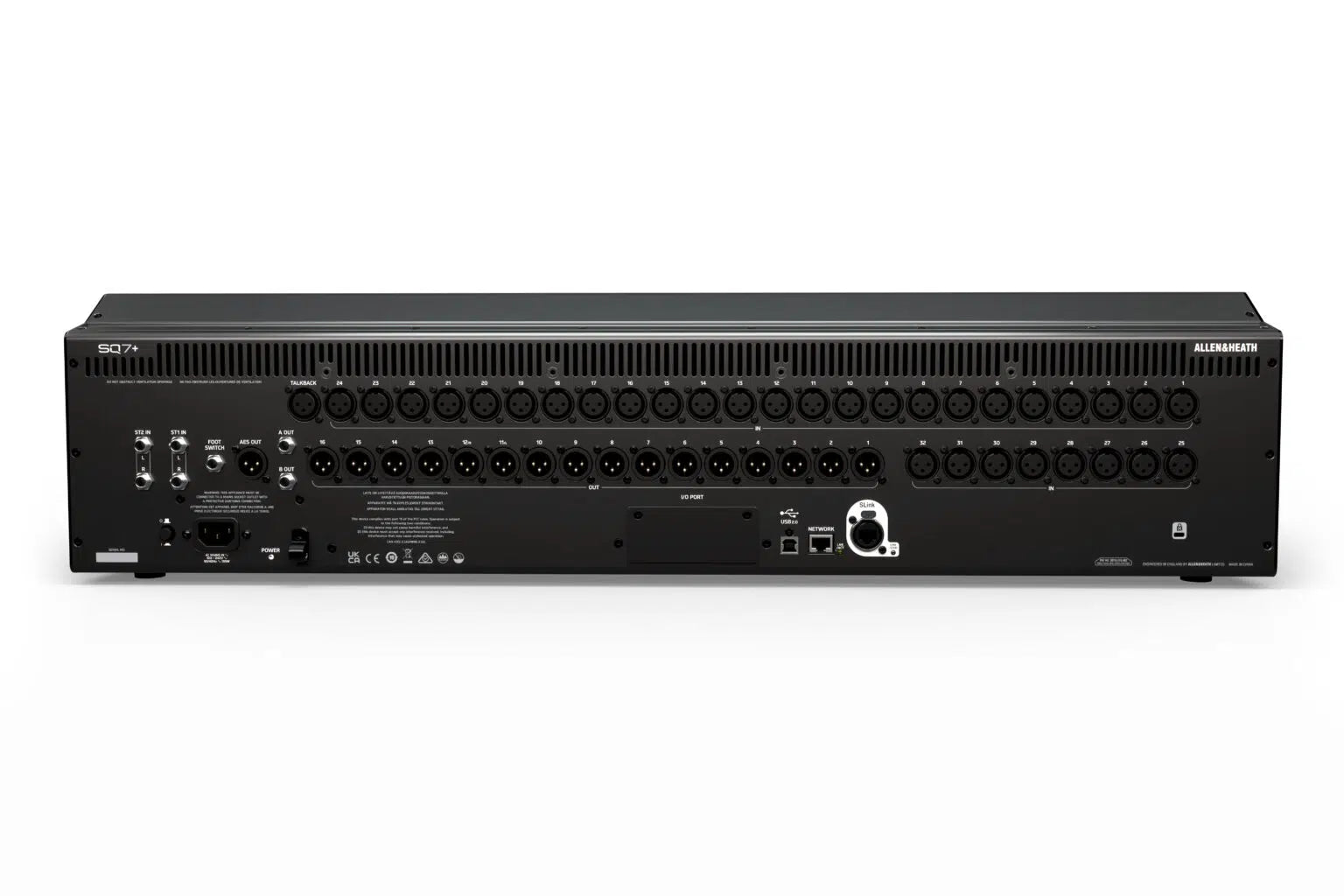

• Analogue I/O
  • 32x XLR Mic/Line Input Sockets
  • 16x XLR Output Sockets
  • 3x Stereo Line Input Sockets (4x TRS ¼” sockets, 1x 3.5mm TRS socket)
  • 1x XLR Talkback Socket
  • 2x TRS Output Sockets
  • Stereo Headphone Output
• Control
  • 33x 100mm Motorised Faders
  • 16x SoftKeys
  • 8x SoftRotaries
  • 6x Channel Strip Layers
  • 9” Touchscreen with dark GUI
  • Configurable single/dual Footswitch Connection
  • Remote control via free apps – Windows/MacOS/iOS/Android
