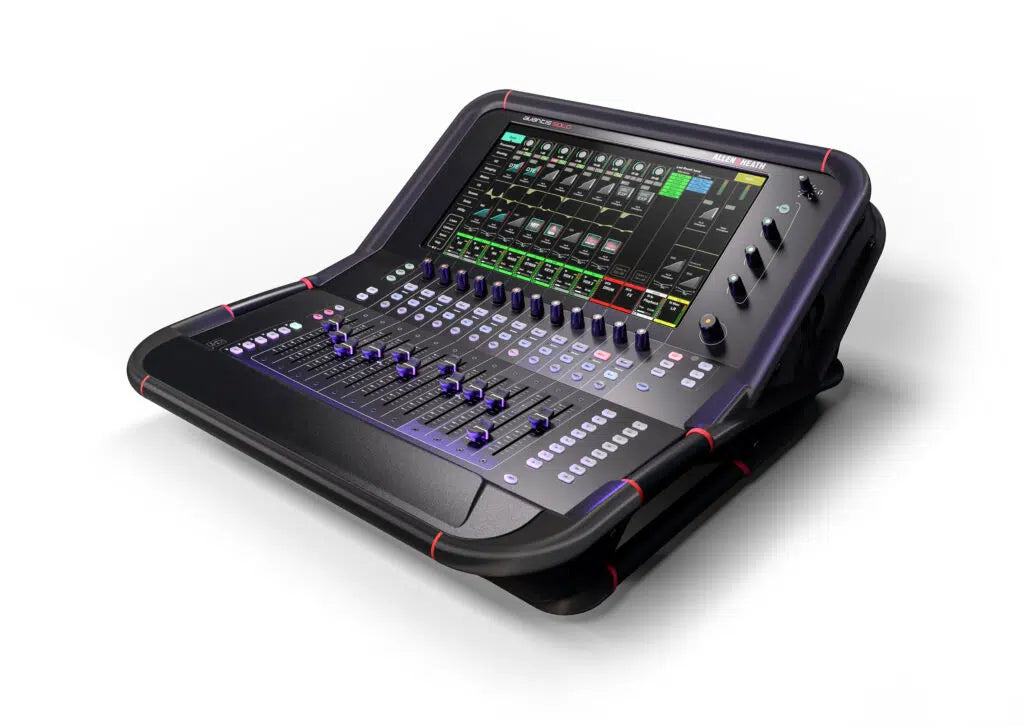

Avantis Solo Ultra Digital Mixer

The Avantis Solo Ultra digital mixer provides 96 mono input processing channels, 12 stereo FX returns, 8 stereo RackUltra FX sends and returns, and 56 flexible mix buses. With our 96kHz XCVI FPGA engine, Avantis Ultra puts all our next-generation technology in a stand-alone 96 channel / 56 configurable bus console, with a Full HD touchscreen, a super-flexible workflow with Continuity UI, extensive I/O options, included DEEP processing and RackUltra FX from our flagship dLive mixing systems, and a rugged full-metal chassis. Fully compatible with all the dLive I/O cards, the full ‘Everything I/O’ range and IP controllers

The integrated SLink port offers Plug’n’Play operation with the GX, DX, AB and AR ranges of remote I/O expanders plus the DX Hub remote hub. Additionally, SLink can be used for digital split applications with a second Avantis mixer or a dLive/SQ system. Compatibility with the ME Personal Monitoring System allows performers to take control of their own monitor mixes via the ME-1 and ME-500 personal mixers. Digital audio networking cards are available to enable integration with other digital audio systems via protocols such as gigaACE, Dante, MADI and Waves SoundGrid.

• XCVI FPGA core
  • 96kHz sample rate
  • Variable bit depth
  • 96bit accumulator
  • Class leading, ultra-low latency (0.7ms)
• 15.6” Full HD capacitive touchscreen with gesture control
• Innovative compact design with super-tough, lightweight full-metal chassis
• 96 Input Channels with full processing (LPF/HPF, Gate, PEQ, Comp, Delay)
• Configurable 56 bus architecture with full processing (PEQ, GEQ, Comp, Delay) on Mix Outputs.
• DEEP Processing Ready
• 72 fader strips (12 faders, 6 layers) with optional dedicated master section
• SLink EtherCON connection for remote audio using gigaACE, GX, DX, ME and dSnake protocols.
• 6 Local Mic/Line Inputs (XLR)
• 6 Local Line Outputs (XLR)
• 1 Stereo AES Input (XLR)
• 1 Stereo AES Outputs (XLR)
• 2 I/O Ports, both capable of 128x128 operation at 96kHz – for optional cards inc. Dante, MADI and gigaACE
• 8 Mute Groups
• 16 DCA Groups with DCA Spill
• 12 Stereo FX with dedicated FX Returns
• 8 Stereo RackUltra FX with dedicated FX sends and returns
• 18 Assignable SoftKeys
• 3 Assignable Custom Rotaries
• Comprehensive metering with multipoint peak detection
• Integrated Fader Illumination
• Built-in signal generator, RTA and spectrogram
• AMM (Automatic Mic Mixer) up to 64 channels across 1,2 or 4 zones
• Quick copy/paste/reset for parameters
• User Permissions to restrict operator access
• 500 Scene memories per show
• Channel Safes, Global and per Scene Recall Filters
• Onboard Stereo Recording & Playback
• USB transfer of Scenes, Libraries, Shows, Audio Files.
• MIDI Control Driver for MIDI control via TCP/IP
• Wireless remote mixing apps for iPad
• BNC Word Clock connector (input or output)
• ¼” TRS and 3.5mm Headphone outs with dedicated analogue volume control
