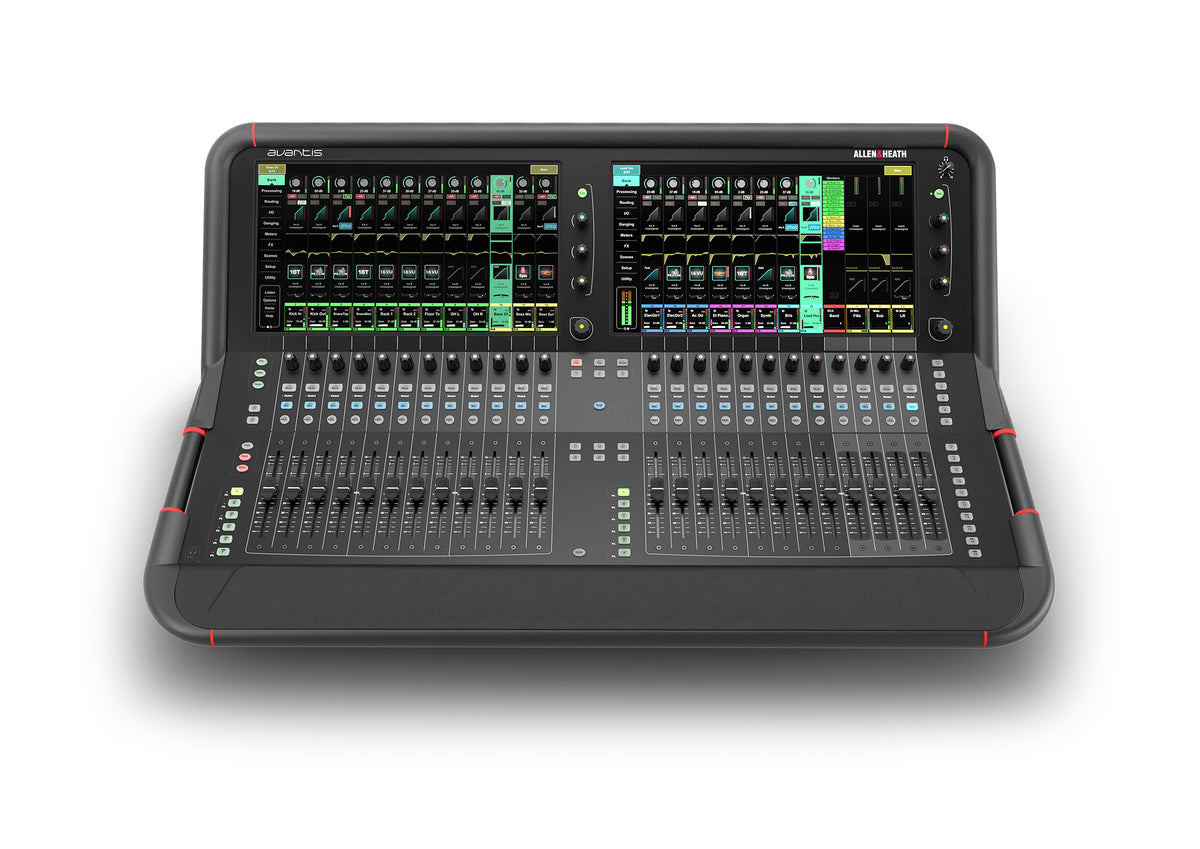

Avantis Ultra Digital Mixer

The Avantis Ultra digital mixer provides 96 mono input processing channels, 12 stereo FX returns, 8 stereo RackUltra FX sends and returns, and 56 flexible mix buses. WIth our 96kHz XCVI FPGA engine, Avantis Ultra puts all our next-generation technology in a stand-alone 96 channel / 56 configurable bus console, with dual Full HD touchscreens, a super flexible workflow with Continuity UI, extensive I/O options, included DEEP processing and RackUltra FX from our flagship dLive mixing systems, and a rugged full-metal chassis. Fully compatible with all the dLive I/O cards, the full ‘Everything I/O’ range and IP controllers.

• XCVI FPGA core
  • 96kHz sample rate
  • Variable bit depth
  • 96bit accumulator
  • Class leading, ultra-low latency (0.7ms)
• Twin 15.6” Full HD capacitive touchscreens with gesture control
• Innovative compact design with super-tough, lightweight full-metal chassis
• 96 Input Channels with full processing (LPF/HPF, Gate, PEQ, Comp, Delay)
• Configurable 56 bus architecture with full processing (PEQ, GEQ, Comp, Delay) on Mix Outputs
• DEEP Processing Included
• 144 fader strips (24 faders, 6 layers) with optional dedicated master section
• SLink EtherCON connection for remote audio using gigaACE, GX, DX, ME and dSnake protocols
• 12 Local Mic/Line Inputs (XLR)
• 12 Local Line Outputs (XLR)
• 1 Stereo AES Input (XLR)
• 2 Stereo AES Outputs (XLR)
• 2 I/O Ports, both capable of 128x128 operation at 96kHz – for optional cards inc. Dante, MADI and gigaACE
• 8 Mute Groups
• 16 DCA Groups with DCA Spill
• 12 Stereo FX with dedicated FX Returns
• 8 Stereo RackUltra FX with dedicated FX sends and returns
• 24 Assignable SoftKeys
• 6 Assignable Custom Rotaries
• Comprehensive metering with multipoint peak detection
• Integrated Fader Illumination
• Built-in signal generator, RTA and spectrogram
• AMM (Automatic Mic Mixer) up to 64 channels across 1,2 or 4 zones
• Quick copy/paste/reset for parameters
• User Permissions to restrict operator access
• 500 Scene memories per show
• Channel Safes, Global and per Scene Recall Filters
• USB stereo recording and playback
• USB transfer of Scenes, Libraries, Shows
• MIDI Control Driver for MIDI control via TCP/IP
• Wireless remote mixing apps for iPad
• BNC Word Clock connector (input or output)  ¼” TRS and 3.5mm Headphone outs with dedicated analogue volume control
