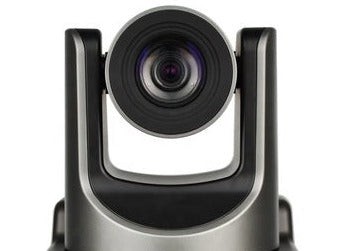

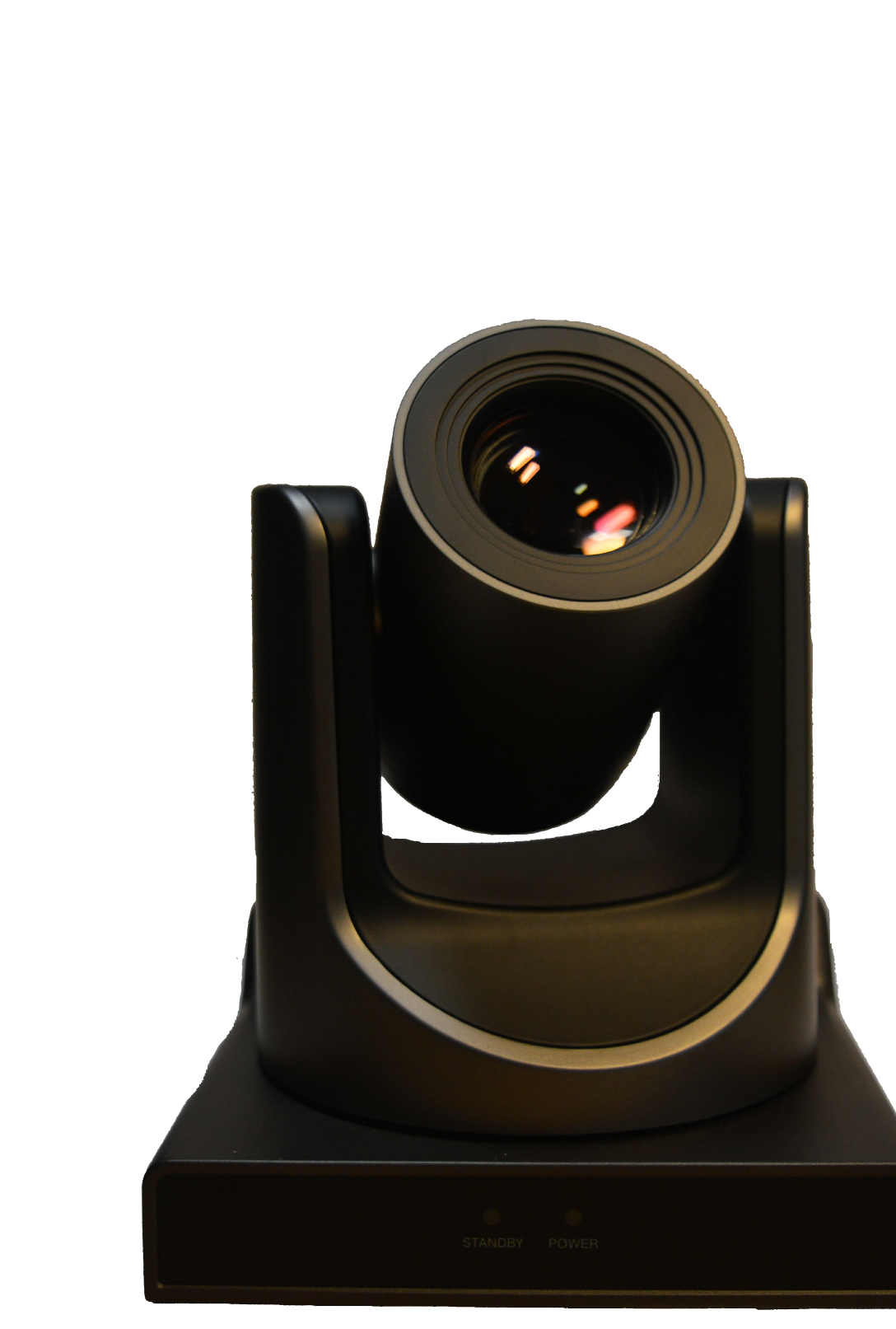

Ayla Full HD PTZ 20x Camera
Ayla Full HD PTZ 20x Camera
Regular price
£899.00 GBP
Regular price
Sale price
£899.00 GBP
Unit price
/
per
Tax included.
Couldn't load pickup availability
Full HD (1080p) PTZ Studio Camera with 20x Optical Zoom lens. 12v or POE operation with HDMI and SDI outputs. Weighs only 1.52kg supplied with PSU, remote and wall bracket for mounting.
| Signal System | HD: 1080p 60, 59.94, 50, 30, 29.97 & 25 - 1080i 60, 59.94, 50 - 720p 60, 59.94, 50, 30 & 25 SD: 480i & 576i |
| Sensor | 1/2.7 inch, CMOS Effective Pixels: 2.07 million |
| Scanning Mode | Progressive |
| Lens | 20x, f4.42mm ~ 88.5mm, f1.8 ~ F2.8 |
| Digital Zoom | 16x |
| Min Illumination | 0.5 Lux @ (F1.8, AGC On) |
| Shutter | 1/30s ~ 1/10000s |
| White Balance | Auto, Indoor, Outdoor, One Push, Manual, VAR |
| Backlight Compensation | Supported |
| Digital Noise Reduction | 2D & 3D Digital Noise Reduction |
| Signal Noise Ratio | ≥55dB |
| Horizontal Angle of View | 60.7° ~ 3.36° |
| Vertical Angle of View | 34.1° ~ 1.89° |
| Horizontal Rotation Range | ±170° |
| Vertical Rotation Range | -30° ~ +90° |
| Pan Speed Range | 1.7° ~ 100° /s |
| Tilt Speed Range | 1.7° ~ 69.9° /s |
| H&V Flip | Supported |
| Image Freeze | Supported |
| Local Storage | Supported |
| No. Of Presets | 255 |
| Preset Accuracy | 0.1° |
| POE | Yes |
