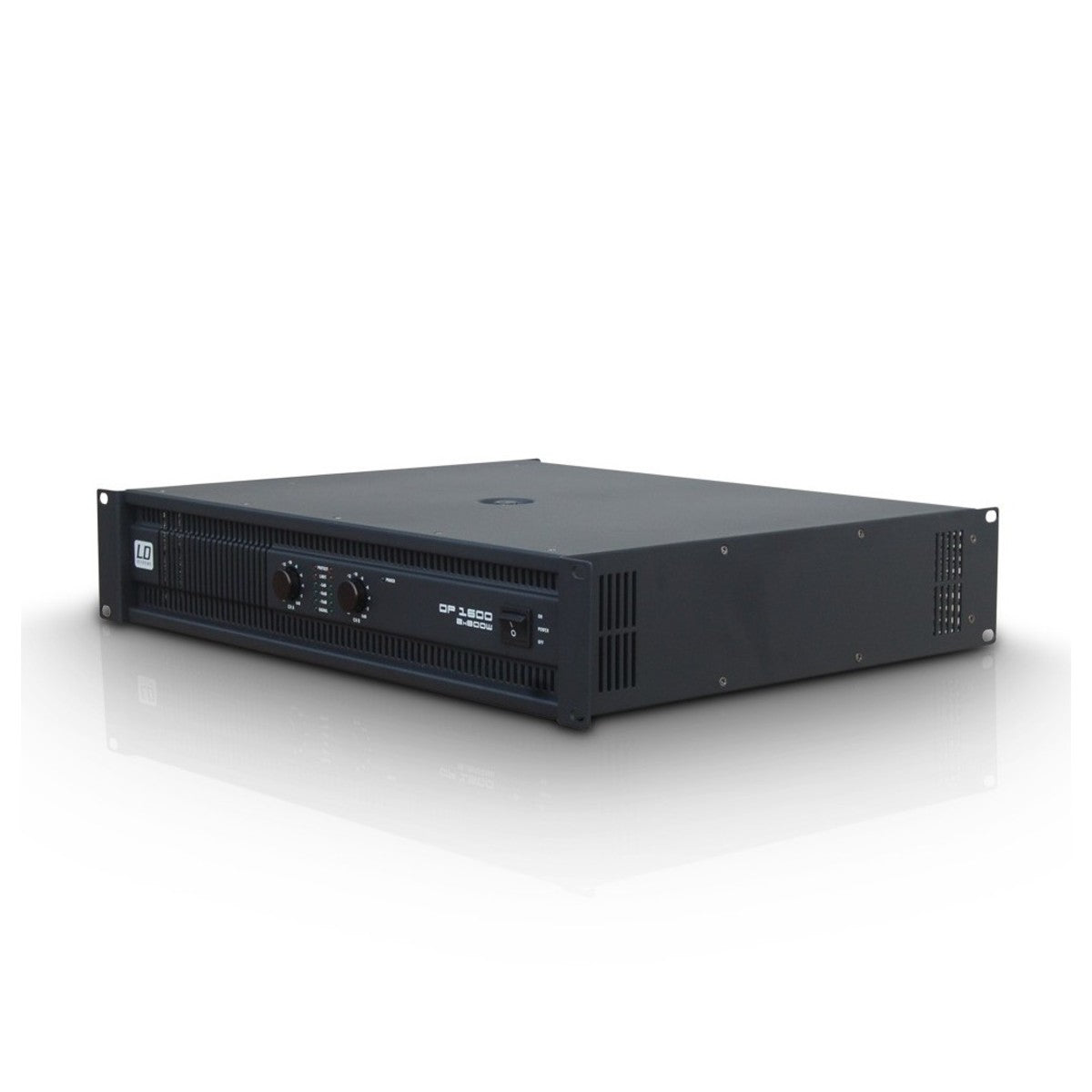

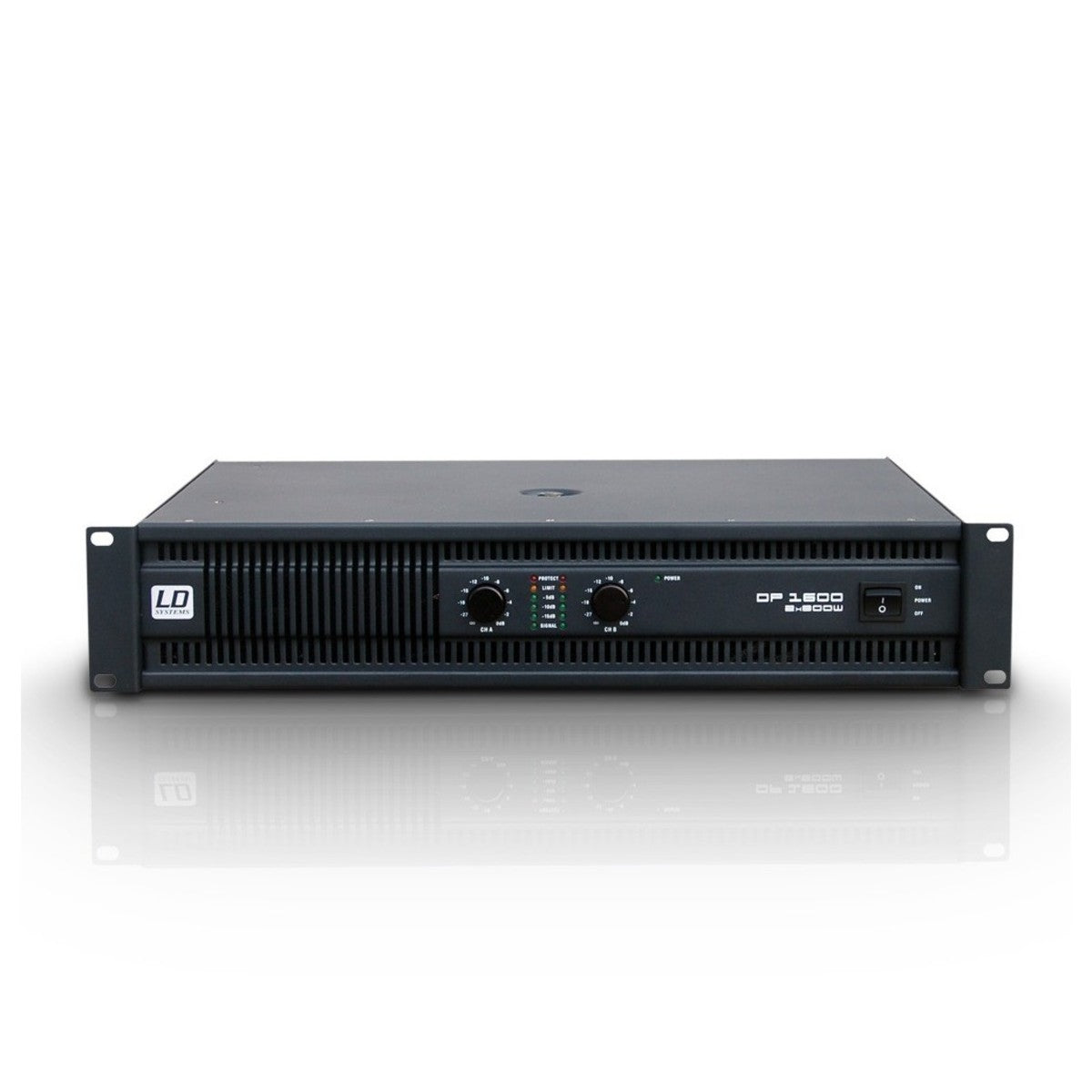

LD Systems DEEP2 1600 Watt Power Amplifier

The new DEEP2 amp series features four class-H power amplifiers with toroidal core offering amplifying levels from 2 x 400 W till 2 x 810 W at 4 Ohm. During the development of this series we attached a great importance to the reliability and the durability of the amps in continuous operation, this is why we used exclusively high end and selected components for the construction of these products.

• 2-Channel Power Amplifier with Class H Output Circuitry
• D elivers a Dynamic and Clear Sound
• User Friendly, Compact Design Provides Reliability and Durability
• Intuitive Ground Lift And Gain Controls
• 2 Channels With 800 Watt Power Output Each
• Rack mountable in a 19'' rack case
• Clip limiter and a variety of electrical and thermal protection circuits

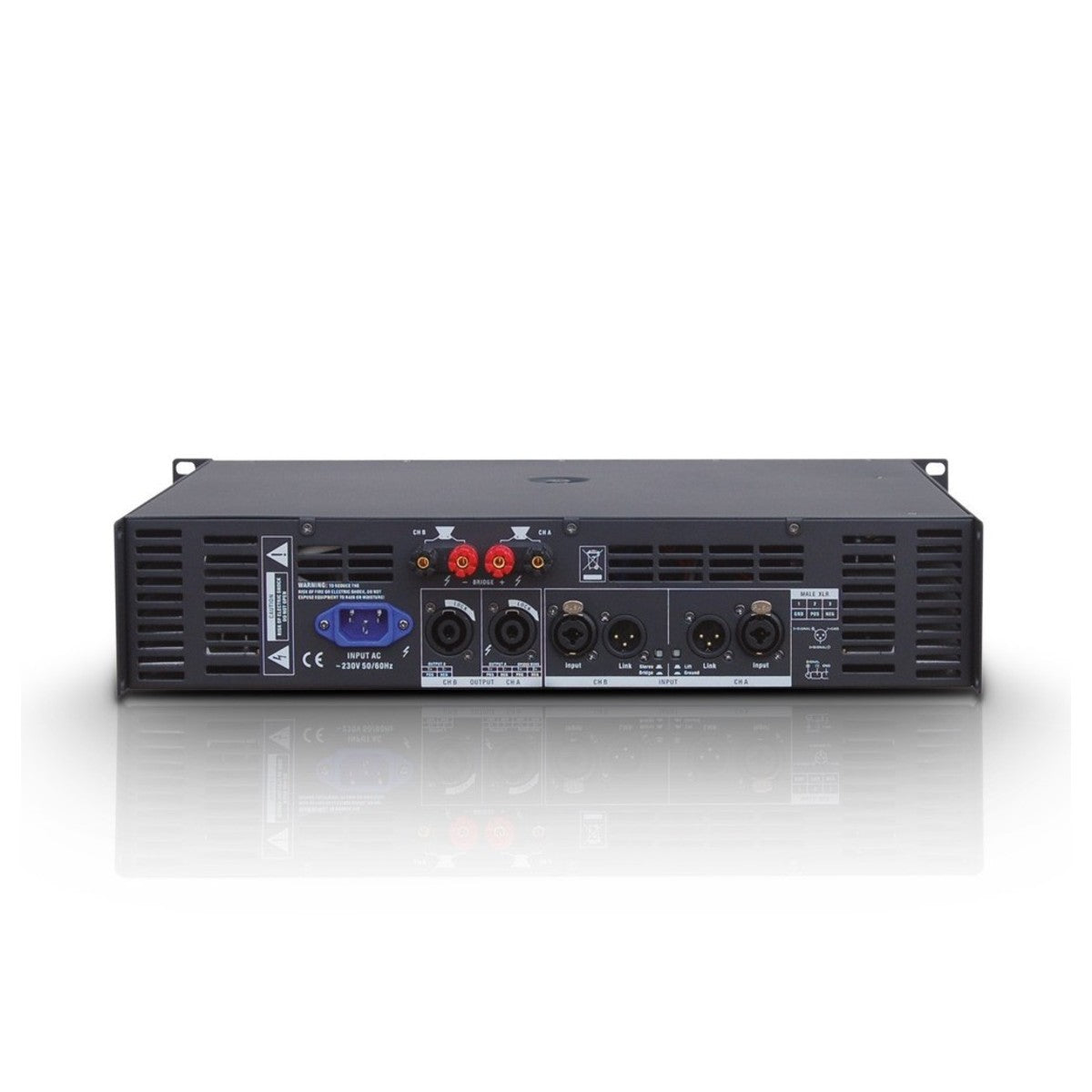

• Combo XLR and Jack inputs and Speakon outputs
• Ground lift switch to eliminate hum
• Stereo or bridged modes
• Product Type: Power Amplifiers
• Type PA: Power Amplifiers
• Rated Output Power (1kHz at 2 Ohms): 2 x 800 W
• Rated Output Power (1kHz at 4 Ohms): 2 x 650 W
• Rated Output Power (1kHz at 8 Ohms): 2 x 450 W
• Rated Output Power (1kHz at 4 Ohms, Bridged): 1600 W
• Rated Output Power (1kHz at 8 Ohms, Bridged): 1300 W
• Output Circuitry: Class H
• Frequency Response: 20 - 20000 Hz
• THD: Signal-to-Noise Ratio: 106 dB
• Damping Factor: > 400
• Crosstalk: >80 dB
• Gain: 39 dB
• Input Sensitivity: 0.775 V
• Protection Circuits: Clip Limiter , DC Protection , Short Circuit , Thermal Overload
• Controls: 2 x Volume , Bridge/Stereo Mode Selector , Ground Lift , Mains Switch (On/Off)
• Indicators: Level , Limit , Power , Protect (Protection Circuit Engaged) , Signal
• Loudspeaker Outputs: 2
• Speaker Output Connections: Speakon Compatible , Terminal Posts
• Cooling: Highly Efficient, Automatic
• Operating Voltage: Transformer
• Operating Voltage: 230 V AC / 50-60 Hz
• Weight: 15.9 kg
