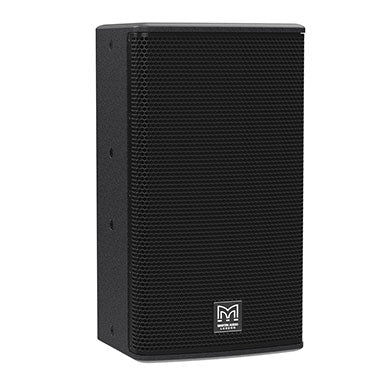

Martin Audio Q10

With a peak SPL of 125dB (131dB with crest factor 4), Blackline Q10 is a high-performance yet compact passive two-way loudspeaker system. It features a 10” (250mm) LF driver with a 2.5” (63mm) voice coil and a 1” (25mm) exit HF compression driver with a 1.4” (36mm) dome.

The system incorporates a Differential Dispersion horn for wider and more consistent coverage, which can be easily rotated for horizontal or vertical orientation depending on deployment requirements.

Blackline Q10 offers exceptional versatility across a wide range of professional applications from distributed sound reinforcement, houses of worship, and AV events to front-fill/ in-fill duties and use as an unobtrusive stage monitor. Its high output performance makes it uniquely suited for music bars and clubs that demand upfront sound levels from a compact enclosure.

When paired with a BlacklineQ Series subwoofer, Q10 becomes a remarkably powerful yet portable system, ideal for small dancefloors or sound reinforcement applications where space is limited but performance is critical.

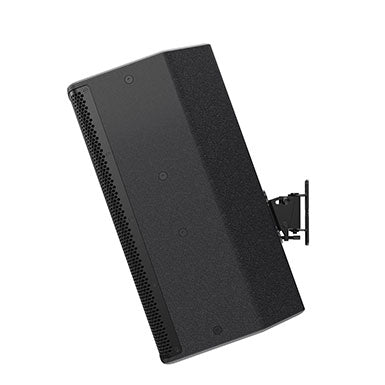

Constructed from durable plywood and finished in a tough black textured paint, Q10 features a screw-fixed steel grille, M8 inserts for wall brackets, yokes or eyebolt suspension, and a pole-mount socket with a removable cover to maintain clean lines in installed applications.

This full-range, passive two-way system is recommended to be used with a processor and amplifier, or a combined amplifier-processor unit, such as a DX processor and VIA amplifier, or an iKON combined amplifier and processor.

• Compact passive two-way system
• Symmetrical multi-angle plywood enclosure
• Peak SPL of 125dB (131dB with crest factor 4)
• User-rotatable Differential Dispersion horn
• Dispersion: 90°–110° horizontal × 50° vertical
• Vertical and horizontal orientation
• Screw-tight, cloth-backed perforated steel grille
• Integrated ergonomic handle made from recycled ABS
• Pole-mount cover maintains clean lines
• 8Ω nominal impedance
• Two NL4 connectors
• Flexible mounting options via M8 inserts
• 85% Post Consumer Recycled ABS Plastic
• FSC Certified Cardboard Packaging
• Biodegradable Box Sealing tape
